Epson printers are widely used in modern homes and offices. However, many users may encounter a confusing prompt during use: "The Maintenance Box Is Full." So, what is the maintenance box on an Epson printer? How do you solve this problem? This blog will guide you through the maintenance box, including its function, when to replace it, and how to replace it. This blog will help you print more comfortably.
Table of Contents

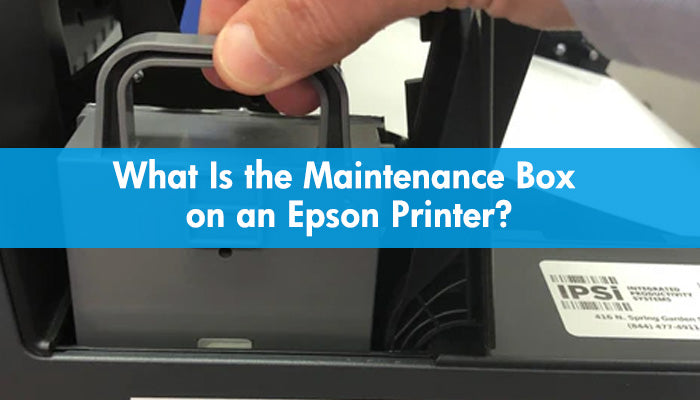

What Is the Maintenance Box on an Epson Printer?
If we search for 'maintenance box' on Google, it will tell us that the maintenance box is a replaceable part in Epson inkjet printers. It will collect the waste ink discharged when the printer performs automatic maintenance operations. Then there will be many new questions: Why do printers produce waste ink? What's inside the maintenance box? Then I will explain these relevant questions to you.
Why Do Printers Produce Waste Ink?
Although we only see the text or images printed on the paper, in fact, a lot of "waste ink" is quietly discharged during the printing process. This waste ink mainly comes from the following aspects:
1. Automatic Print Head Cleaning
Epson printer's nozzle is very small and easily clogged due to ink drying. In this case, the printer will force the ink to be ejected from the nozzle. This will clear the blockage and ensure the printing quality. This type of "flushed" ink cannot be recycled and reused. Therefore, the waste ink must be properly collected.
2. Printing Canceled or Error
For example, you suddenly cancel a print task, but the nozzle has already started working. In this case, the nozzle may have released some ink. These inks will not be used on the paper, but will be collected.
3. Residues from the Printing Process
During normal printing, the print head may deviate from the normal printing direction or leak a small amount of ink.
Where Is the Maintenance Box Located?
In most Epson home and office printers, the maintenance box is usually located at the bottom or side of the printer. You can find it by opening the body cover or the small door at the back. In addition, some Epson printer models are designed with a removable card box for easy user replacement.
 |
|
What's inside the Maintenance Box?
The Maintenance Box contains one or more ink-absorbent pads. These pads quickly absorb waste ink and prevent it from spilling. As you use them more, the pads will gradually reach their limit. At this time, the printer will prompt "Maintenance Box Full".
Do All Epson Printers Have a Maintenance Box?
Not all Epson printers have a replaceable maintenance box! Some high-end or commercial Epson printers, such as the EcoTank series and WorkForce series, are usually equipped with replaceable maintenance boxes. Users can replace them at home.
In some entry-level or older Epson printers, there is no separately replaceable maintenance box. But this type of printer can also handle waste ink. The waste ink collection cotton of these printers is fixed inside the machine. So you can't replace it easily.
When the waste ink cotton is "full", the system will still prompt "Maintenance Box Full". At this time, you need to send it to the official or repair shop for repair. Specialized personnel will help you replace the ink absorber. Some users will also try to disassemble the machine and replace it themselves. But this requires high technical requirements, and this way is risky.
What Does the Maintenance Box Do on an Epson Printer?
From the previous article, we know that printers produce waste ink for many reasons. These inks contain chemical dyes or pigments. If waste ink is left inside the printer, it will harm the printer as follows:
- The ink will cause damage to electronic components.
- The ink may also leak onto the table or floor.
- The ink accumulates in the printer. This may cause mold and odor inside the printer.
Therefore, Epson specially designed a "maintenance box". The maintenance box collects and locks this waste ink. In this way, the printer will be clean and the working environment will be safe. The maintenance box usually has the following functions:
- Collect waste ink
- Lock waste ink: The ink-absorbing cotton is made of a special material. It can absorb and lock waste ink to prevent ink leakage.
- Monitor usage: The printer will record the "usage" of the ink-absorbing cotton.
- Replaceable design: When the printer prompts "Maintenance Box Full", the user can replace it with a new one. This way can extend the service life of the printer.
How to Determine Whether the Maintenance Box Needs to Be Replaced
1. Printer display or driver prompt
This is the most direct and accurate way. When the maintenance box is about to be full or is full, the printer screen will pop up a message similar to the following:
- "Maintenance Box Near End of Service Life"
- "Maintenance Box Full - Replace required."
Some printers without a display will prompt through the driver or operating system pop-up window.
2. Check with the Epson Status Monitor tool
Epson provides supporting software. You can accurately understand the remaining service life through it. Operation steps are as follows: (take Windows system as an example)
- Open "Control Panel" → Click "Devices and Printers"
- Right-click your Epson printer → Select "Printing Preferences"
- Find the "Maintenance" or "Status Monitor" tab
- Open Epson Status Monitor and check the status of the maintenance box
3. The printer's own status page or maintenance report
Some Epson printers can print status reports. You can know the status of the maintenance box in the report. Operation steps are as follows: (depending on the printer model):
- Select the "Settings" or "Reports" menu in the panel
- Find "Print Status Page" or "Self-Test Page"
- After printing, check the "Maintenance Box" column
How to Replace the Maintenance Box on an Epson Printer
Step 1. Turn off the printer and unplug the power
For safety, you'd better turn off the power and unplug the plug before operation. This can prevent misoperation or electric shock.
Step 2. Open the maintenance box cover
The maintenance box is usually located at the bottom of the back or the bottom side of the printer. The cover is usually marked with a Maintenance Box or a waste ink icon. Find it and open it.
Step 3. Take out the old maintenance box
You need to hold the handles or grooves on both sides of the maintenance box and pull it out horizontally. You should be gentle and avoid shaking. Otherwise, the waste ink will overflow.
Step 4. Install a new maintenance box
- Unpack the new maintenance box. You must be careful not to touch the ink-absorbent cotton.
- Insert it smoothly into the slot in the direction of the arrow. Until you hear a "click", it means it is installed in place.
Step 5. Close the cover and restart the printer
Then, you should close the cover, plug it in again, and turn it on. The printer will automatically recognize the new maintenance box and clear the "Maintenance Box Full" prompt.
Step 6. Confirm that the status returns to normal
At last, you can print a test page or check the maintenance box in the Epson Utility software. The status should show "OK" or "Ready".
Conclusion
"Maintenance Box Full" may seem like a big problem, but it's just a "self-cleaning reminder" for Epson printers. Now you know what it does, when to replace it, and how to replace it. So next time you see a reminder, you won't panic!
